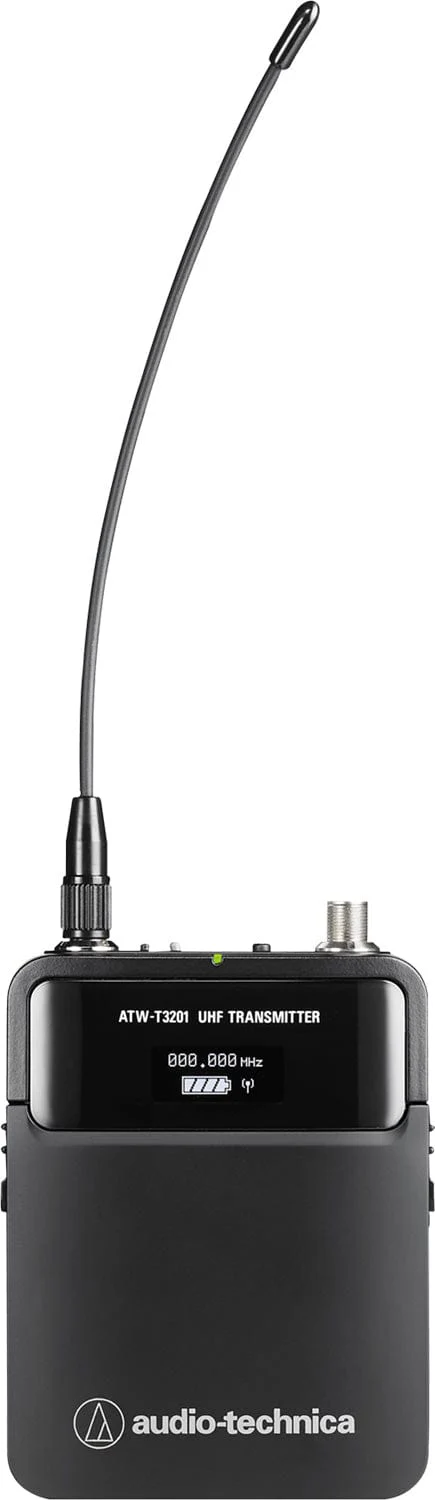

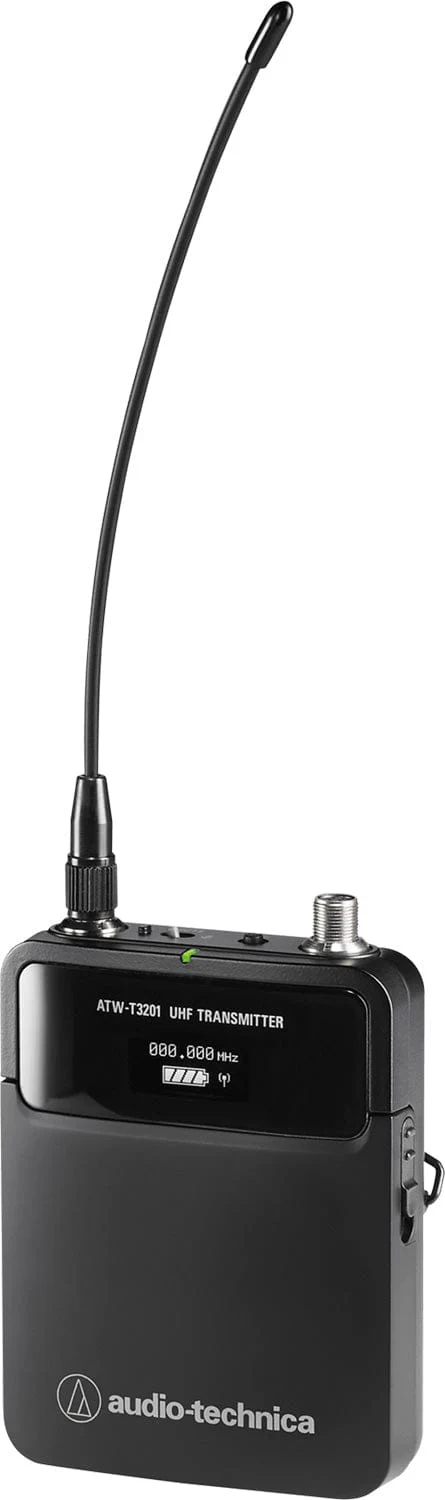

Audio-Technica ATW-T3201 3000 Series UHF Wireless Body Pack
Audio-Technica ATW-T3201 3000 Series UHF Wireless Body Pack
The Audio-Technica ATW-T3201 is a 3000 Series (4th generation) bodypack transmitter compatible with ATW-R3210 and ATW-R3210 Networked receivers. It features a 4-pin cH-style screw-down connector and an adjustable input level to accommodate the cH-style lavalier or headset microphone of your choice, or an adapter cable for guitar and bass. With a rugged metal housing and rounded corners, the transmitter is comfortable to wear and provides natural audio to presenters, clergy, lecturers, and performers working in business and educational settings, houses-of-worship, theaters, or on musical stages. The ATW-T3201 operates on a wide 60 MHz UHF tuning range with 2400 selectable frequencies available. It provides up to 9.5 hours of operation on two AA NiMH rechargeable batteries (available separately), with a selectable 10/30mW RF power output for overcoming interference in difficult RF environments. The transmission range is up to 330'.
Features:
- Unique multifunction button can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
- Tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
- Charging terminals work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
- OLED screens for optimal readout of key settings and alerts
Specifications:
- RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 Ω
- Battery Life:
- High: 8.0 hours / Low: 9.0 hours (alkaline)
- High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh)
- Depending on battery type, usage and environmental conditions.
- Battery Type: Two 1.5V AA, not included
- Dimensions: 64 mm x 82 mm x 23 mm (W x D x H)
- Input Connections:
- 4-Pin screw down cH-Style Connector
- Pin 1: GND
- Pin 2: INST INPUT
- Pin 3: MIC INPUT
- Pin 4: DC BIAS +5V
- Net Weight: 102 g
- Spurious Emissions: Following Federal and National Regulations
Original: $299.00
-70%$299.00
$89.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Audio-Technica ATW-T3201 3000 Series UHF Wireless Body Pack
The Audio-Technica ATW-T3201 is a 3000 Series (4th generation) bodypack transmitter compatible with ATW-R3210 and ATW-R3210 Networked receivers. It features a 4-pin cH-style screw-down connector and an adjustable input level to accommodate the cH-style lavalier or headset microphone of your choice, or an adapter cable for guitar and bass. With a rugged metal housing and rounded corners, the transmitter is comfortable to wear and provides natural audio to presenters, clergy, lecturers, and performers working in business and educational settings, houses-of-worship, theaters, or on musical stages. The ATW-T3201 operates on a wide 60 MHz UHF tuning range with 2400 selectable frequencies available. It provides up to 9.5 hours of operation on two AA NiMH rechargeable batteries (available separately), with a selectable 10/30mW RF power output for overcoming interference in difficult RF environments. The transmission range is up to 330'.
Features:
- Unique multifunction button can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
- Tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
- Charging terminals work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
- OLED screens for optimal readout of key settings and alerts
Specifications:
- RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 Ω
- Battery Life:
- High: 8.0 hours / Low: 9.0 hours (alkaline)
- High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh)
- Depending on battery type, usage and environmental conditions.
- Battery Type: Two 1.5V AA, not included
- Dimensions: 64 mm x 82 mm x 23 mm (W x D x H)
- Input Connections:
- 4-Pin screw down cH-Style Connector
- Pin 1: GND
- Pin 2: INST INPUT
- Pin 3: MIC INPUT
- Pin 4: DC BIAS +5V
- Net Weight: 102 g
- Spurious Emissions: Following Federal and National Regulations
