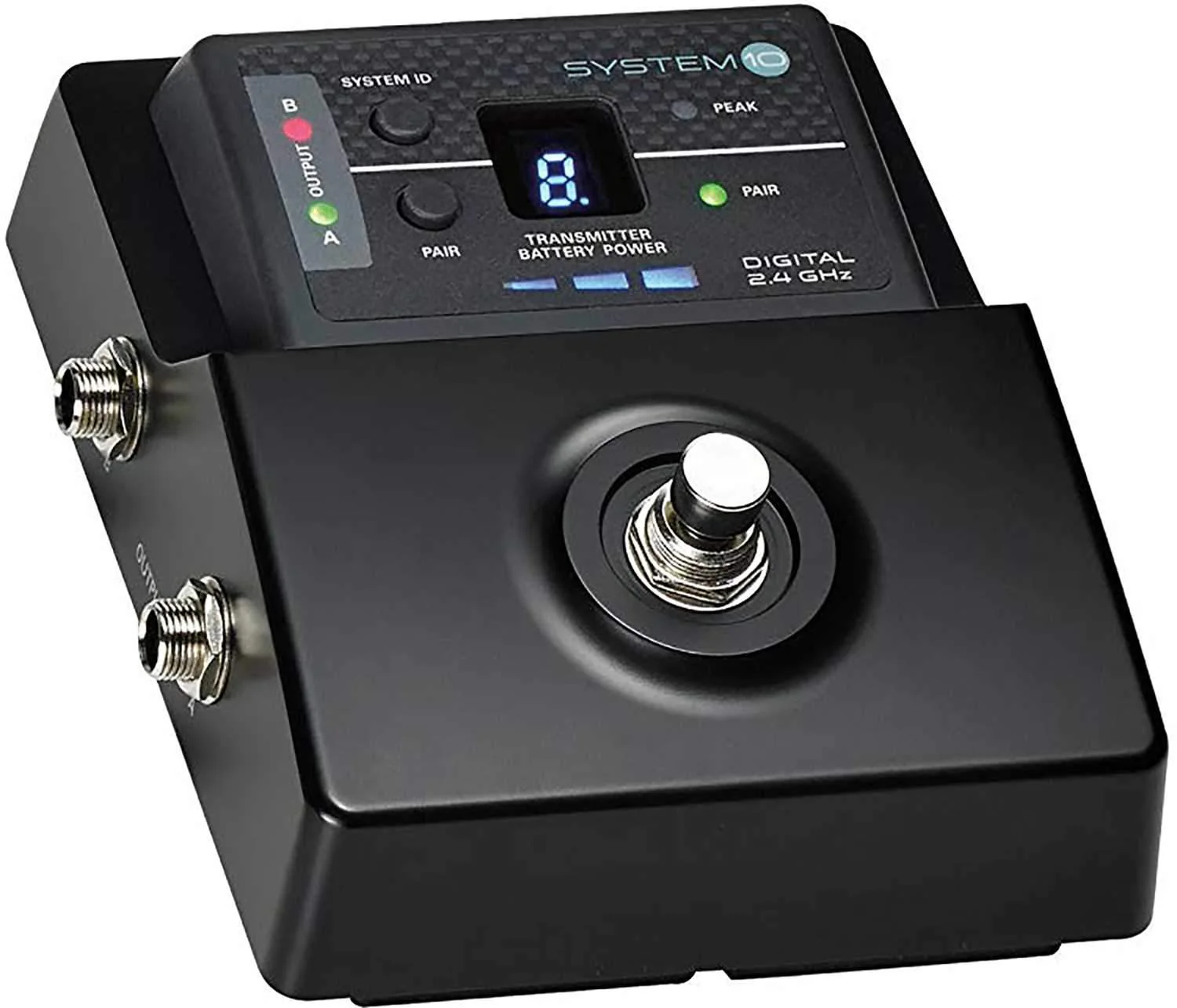

Audio Technica ATW-R1500 Stompbox 1Ch Receiver

Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance • 2.4 GHz range – completely free from TV interference • Three levels of diversity assurance: frequency, time, & space • Two switched TRS balanced ¼" output jacks • Output mode selector and foot switch to toggle between outputs or mute/unmute Output A without muting Output B (e.g., for use with tuner) • Multi-pairing function to link a single receiver with up to eight body-pack transmitters • Transmitter battery level display on receiver

Features:

• The System 10 Stompbox digital wireless receiver combines the advanced 24-bit operation, easy setup and clear, natural sound quality of other System 10 configurations with unique functionality for guitarists and other instrumentalists
• The rugged, metal, pedal board-mountable receiver is equipped with a foot switch, two switched TRS balanced ¼" outputs and an output mode selector
• With the tap of a foot, musicians can toggle between outputs or mute and unmute one output without muting the other

Specifications:

• SKU: ATW-R1500
• Frequency Response: 20 Hz to 20 kHz Depending on microphone type
• Accessories: Included Power supply, hook & loop fastener x2
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
• Max Output level: 1/4" (6.3 mm), TRS balanced: +12 dBV
• Receiving System: (frequency/time/space)
• Operating Temerature Range: 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
• Operating Frequencies: 2.4 GHz ISM band
• Total Harmonic Distortion: 0.05% typical
• Dynamic Range: >109 dB (A-weighted), typical
• Operating Range: 18.3 m (60') radius, 36.6 m (120') diameter typical.Open range environment with no interfering signals
• Dimensions: 101 mm (3.98") W x 44 mm (1.73") H x 130 mm (5.12") D
