Audio Technica ATW-2192b Beige Wireless Headset

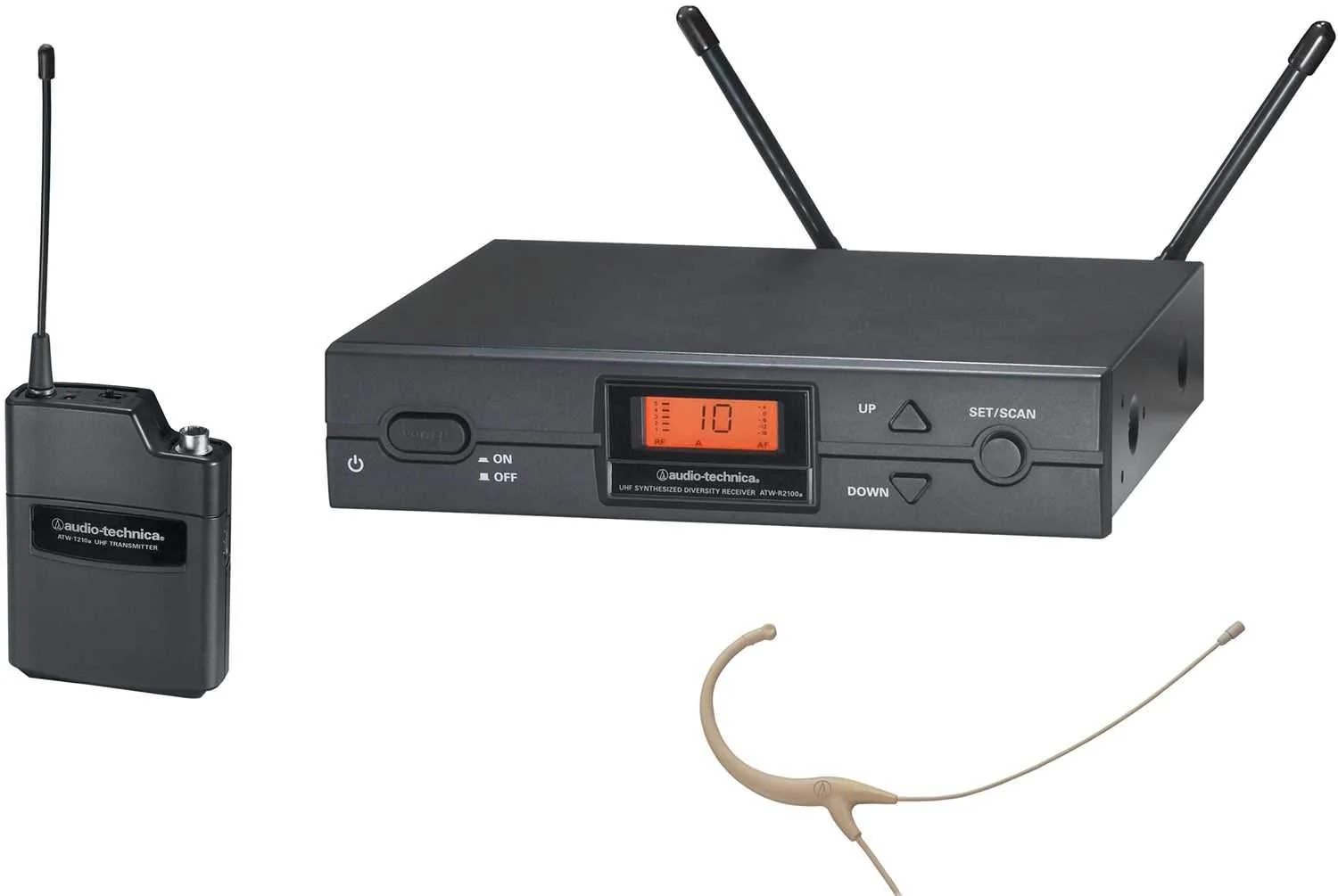

ATW-R2100b receiver and ATW-T210a body-pack transmitter with BP892cW-TH MicroSet® omnidirectional condenser headworn microphone (beige). Includes element covers, windscreens and clothing clip.

Features:

• Serious advances in affordable professional wireless
• Clear sound quality and rock-solid, dependable performance
• Automatic frequency scanning
• 10 compatible user-switchable channels
• Antenna power available for powered antennas & other in-line RF devices
• True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
• Tone Lock™ tone squelch system fights interference
• Rugged metal half-rack receiver with soft-touch controls and LCD display
• Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
• Switchable transmitter power output with high and low settings offered
• Includes rack-mount kit and detachable UHF antennas
• Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver

Specifications:

• Operating Frequencies: Band I : 487.125 to 506.500 MHz
• Number of Channels: 10 total
• Modulation Mode: FM
• Maximum Deviation: ±40 kHz
• Dynamic Range: > 110 dB (A-weighted), typical
• Total Harmonic Distortion: < 1% (at 1 kHz, ±20 kHz deviation)
• Operating Range: 100 m (300'), typical

Open range environment with no interfering signals.

• Operating Temperature Range:
  • 5º C to 45º C
  • 41º F to 113º F

  Battery and LCD performance may be reduced at very low temperatures.

• Frequency Response: 100 Hz to 15 kHz (+1 dB, -3 dB)

Receiver Specifications:

• Receiving System: True diversity
• Image Rejection: 60 dB nominal, 55 dB minimum
• RF Sensitivity:
  • 20 dBuV at 60 dB S/N ratio
  • (50 ohms termination)
• Antenna Input:
  • BNC-type, 50 ohms
  • Bias voltage 12V DC, 60 mA, each
• Power Requirements: 12-18V DC, 500 mA
• Dimensions:
  • 210.0 mm (8.27") W x
  • 162.2 mm (6.39") D x
  • 44.0 mm (1.73") H

Not including BNC connectors or feet.

• Net Weight: 1.0 kg (35.3 oz), without accessories
• Accessories Included: Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters

Addtional Receiver Specifications:

• Maximum Output Level:
  • XLR, balanced: +9 dBV
  • ¼" (6.3 mm), unbalanced: +4 dBV
• Balanced Audio Output Attenuator:
  • Two position switch: 0 / -12 dB

Body-Pack Transmitter Specifications:

• RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
• Spurious Emissions: Following federal and national regulations
• Input Connections:Four-pin Locking Connector
  • Pin 1: GND
  • Pin 2: INST Input
  • Pin 3: MIC Input
  • Pin 4: DC Bias +9V
• Batteries: Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)

Recharging power for NiMH batteries (with ATW-CHG2)

U.S./Canada/Latin America: 3.2 V DC, 230 mA x2

Other world areas: 3.2 V DC, 320 mA x2

• Battery Life:
  • High: 7 hours (alkaline)
  • Low: 9 hours (alkaline)

Depending on battery type and use pattern.

Dimensions:

• 66.0 mm (2.60") W x
• 22.5 mm (0.89") D x
• 92.3 mm (3.63") H

Net Weight: 81 g (2.9 oz), without batteries

Handheld Transmitter Specifications:

RF Power Output: High:30 mW; Low: 10 mW (switchable), at 50 ohms

Spurious Emissions: Following federal and national regulations

Microphone Element: Dynamic cardioid

Batteries: Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)

Recharging power for NiMH batteries (with ATW-CHG2)

U.S./Canada/Latin America: 3.2 V DC, 230 mA x2

Other world areas: 3.2 V DC, 320 mA x2

Battery Life:

• High: 7 hours (alkaline)
• Low: 9 hours (alkaline)

Depending on battery type and use pattern.

Dimensions:

• 232.0 mm (9.13") long
• 48.0 mm (1.89") diameter

Net Weight: 252 g (8.9 oz), without batteries

Accessory Included: AT8456a Quiet-Flex™ stand clamp
