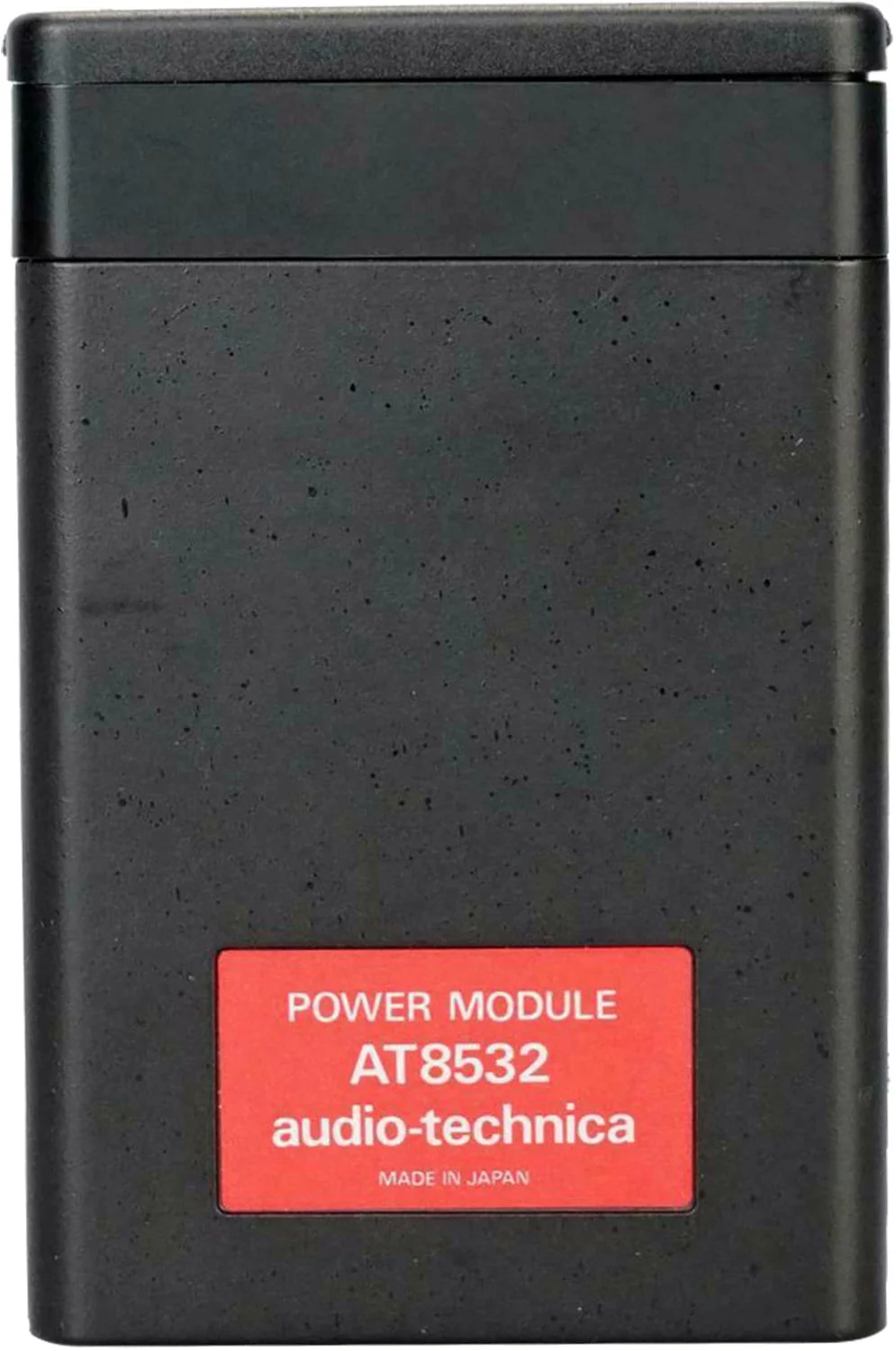

Audio-Technica AT8532 Belt Pack Power Module for ATM35BP

****Beltpack Only*****

A cardioid condenser clip-on instrument microphone which will clip to brass, reeds, piano, acoustic bass, snare, and toms. It has a crisp, clear, well-balanced response, even at high SPLs. UniMount® clip permits accurate positioning while protecting the element. Operates on battery or phantom power (has its own power supply).

Specifications:

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar pattern: Cardioid
• Frequency response: 30-20,000 Hz
• Low frequency roll-off: 150 Hz, 12 dB/octave
• Open circuit sensitivity: -45 dB (5.6 mV) re 1V at 1 Pa
• Impedance: 200 ohms
• Maximum input sound level: 145 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic range (typical): 118 dB, 1 kHz at Max SPL
• Signal-to-noise ratio: 67 dB, 1 kHz at 1 Pa
• Phantom power requirements: 11-52V DC, 2 mA typical
• Battery type: 9V
• Battery current/life: 1 mA / 1000 hours typical
• Switch On-flat, on-roll-off (phantom) | Off, on-flat, on-roll-off (battery)
• Weight (microphone): 0.3 oz (8.5 g)
• Weight (power module): 5.4 oz (153 g)
• Dimensions (microphone): 1.39" (35.2 mm) long, 0.47" (12.0 mm) diameter
• Dimensions (power module): 3.78" (96.0 mm) H x 2.48" (63.0 mm) W x 0.87" (22.0 mm) D
• Output connector (power module): integral 3-pin XLRM-type
• Cable: 25' (7.6 m) long (permanently attached to microphone), with TA3F output connector that mates with TB3M jack on power module
