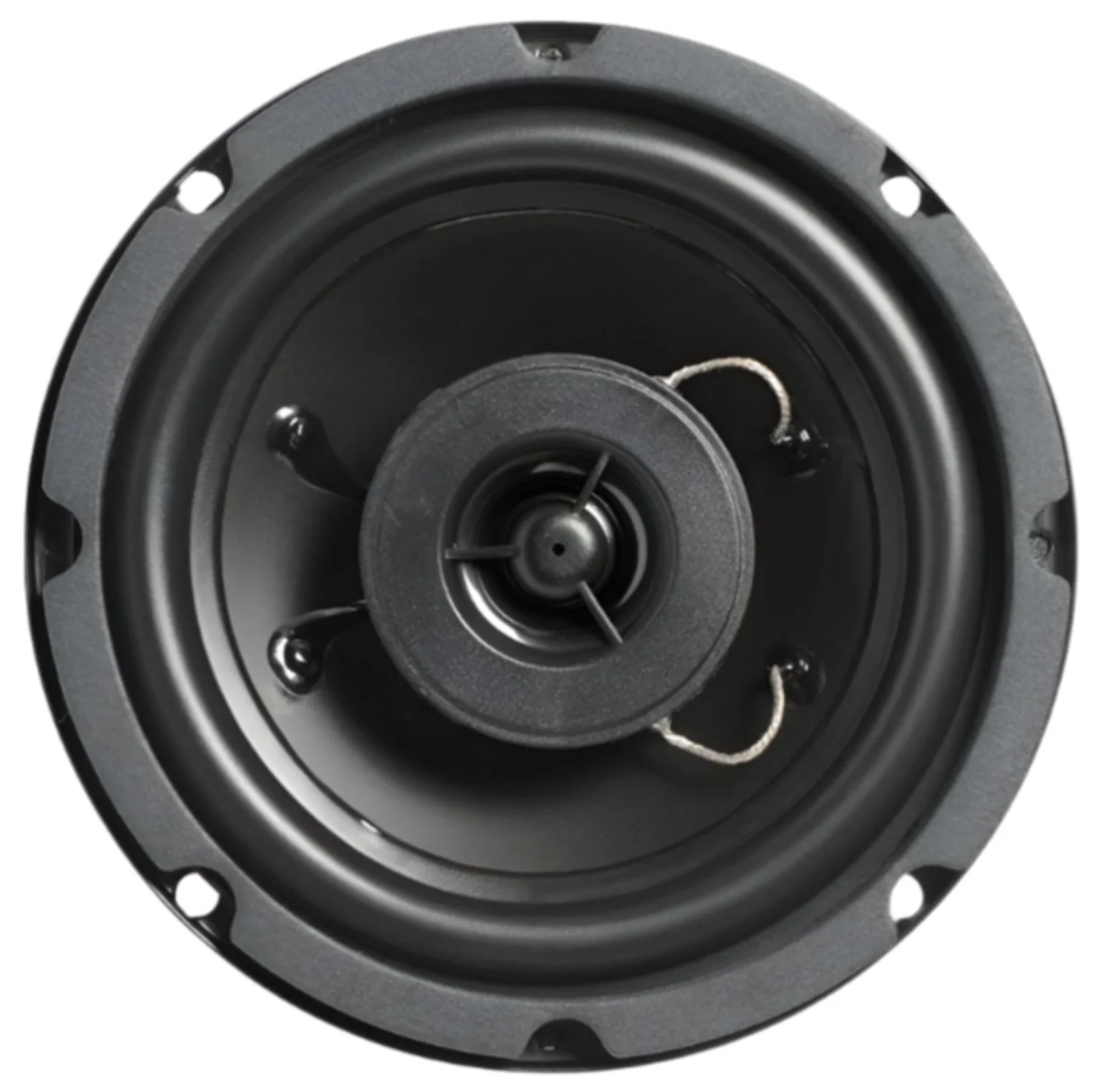

Atlas Sound FA134T87 4-Inch Coaxial Speaker

The FA134T87 is a UL listed coaxial 4" (127mm) speaker that handles 25-watts with smooth extended frequency response.

The unit's 130° dispersion angle effectively reduces the number of speakers necessary to achieve total coverage in distributed systems with low ceilings.

Model FA134T87 has been engineered as a system with 8-watt high performance 70.7V transformer, optional high performance matched enclosure and choice of attractive grilles (sold seperately).

Speakers front-load into the enclosure or may be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-4 instead of an enclosure.

FEATURES

• 25-Watt, UL Listed, 4" Coaxial Loudspeaker
• Front Loads into Acoustically-Matched System Enclosure, Plaster or Trim Ring
• Patented System Design Provides Easy Installation
• Wide-Angle Dispersion for Excellent Sound Coverage in Rooms with Low Ceilings
• UL Certified, Safety Listed to UL1480

SPECIFICATIONS

• Speaker Type
• Coaxial
• Sensitivity
• 88dB Average, 92dB Peak
• Power Taps
• 1, 2, 4, & 8 Watts
• Frequency Response
• 110Hz - 20kHz
• Dispersion
• 130°
• Depth
• 4.79" (12.17 cm)
• Diameter
• 5.04" (12.8 cm)
• Shipping Weight
• 1.71 lbs (0.77 kgs)
• Certified To Safety Listing
• UL 1480
