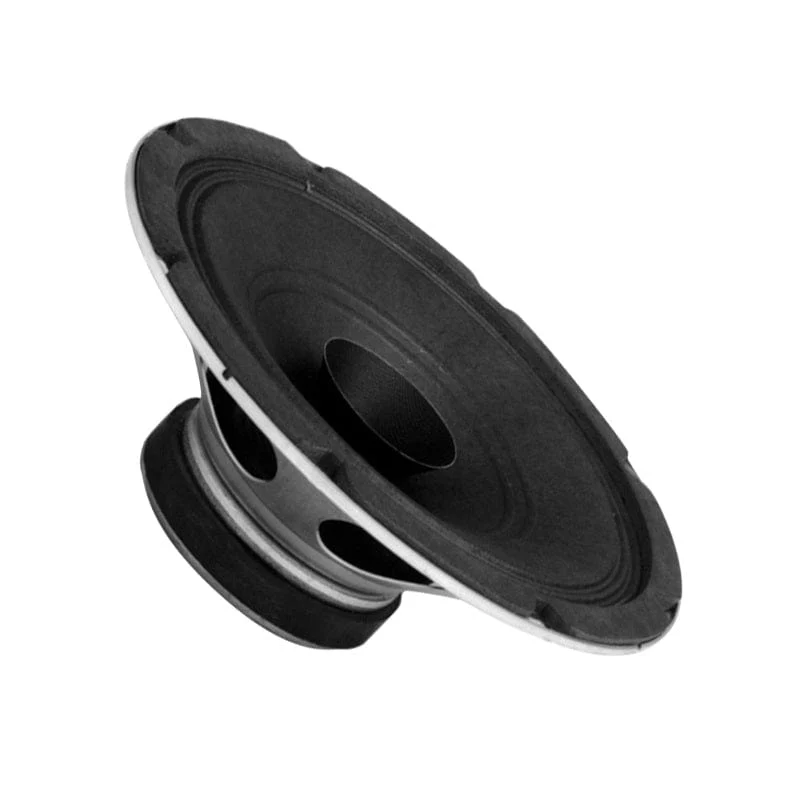

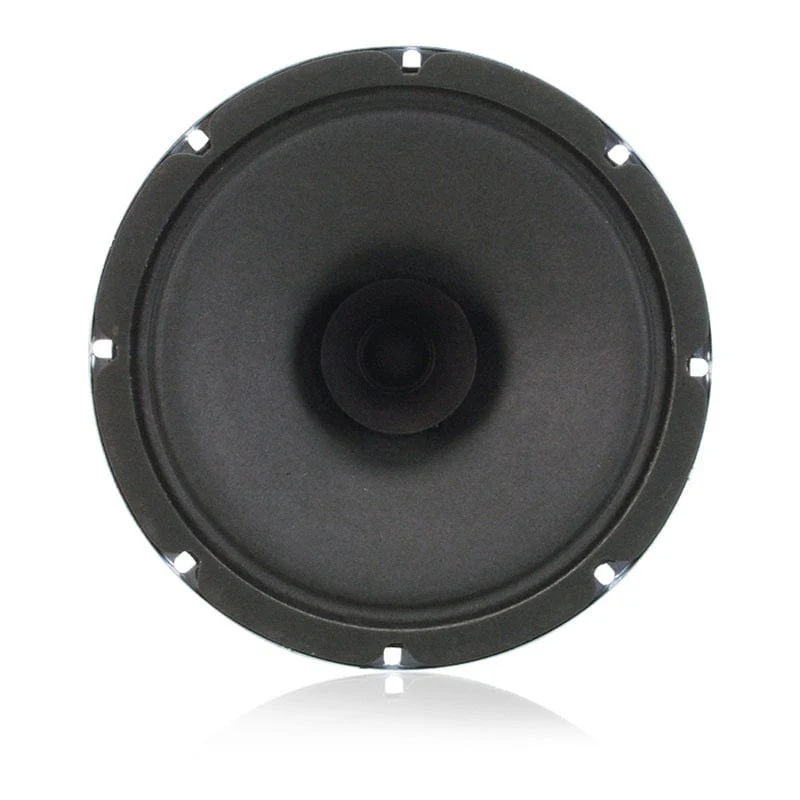

Atlas Sound C10AT72 8-Inch Dual Cone Speaker

Model C10AT72 is a dual cone, 25-watt 8" (205mm) speaker with a 10 oz. (260g) ceramic magnet, and a pre-mounted 25/70.7V 4W transformer. It includes a curvilinear, treated paper cone for lower harmonic distortion. The speaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.

Model C10A operates within a frequency response range of 45Hz - 19kHz with a sensitivity of 97dB and a dispersion angle of 105°.

It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements.

FEATURES

• Acoustically Proven, General Purpose 25-Watt Loudspeaker
• Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
• Includes LT-72 Factory-Installed Line-Matching Transformer
• Mounts a Wide Selection of Atlas Sound Baffles
• UL Certified, Safety Listed to UL1480A and UL2043

SPECIFICATIONS

• Speaker Type
• Treated Paper
• Sensitivity
• 97dB Peak, 94dB Average
• Frequency Response
• 100Hz - 10kHz
• Power Taps
• .25, .5, 1, 2, & 4 Watts
• Dispersion
• 105°
• Depth
• 2 7/8" (7.3025 cm)
• Diameter
• 8" (20.32 cm)
• Shipping Weight
• 3.00 lbs (1.36 kgs)
• Safety Listed
• 1480
