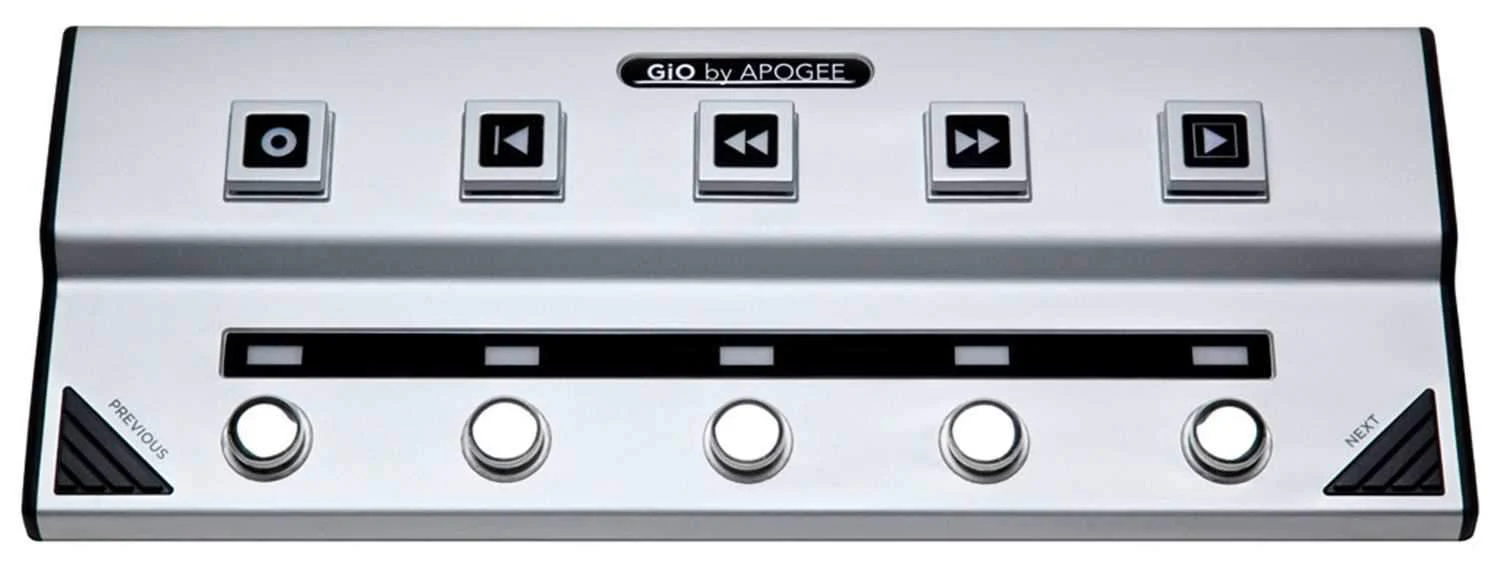

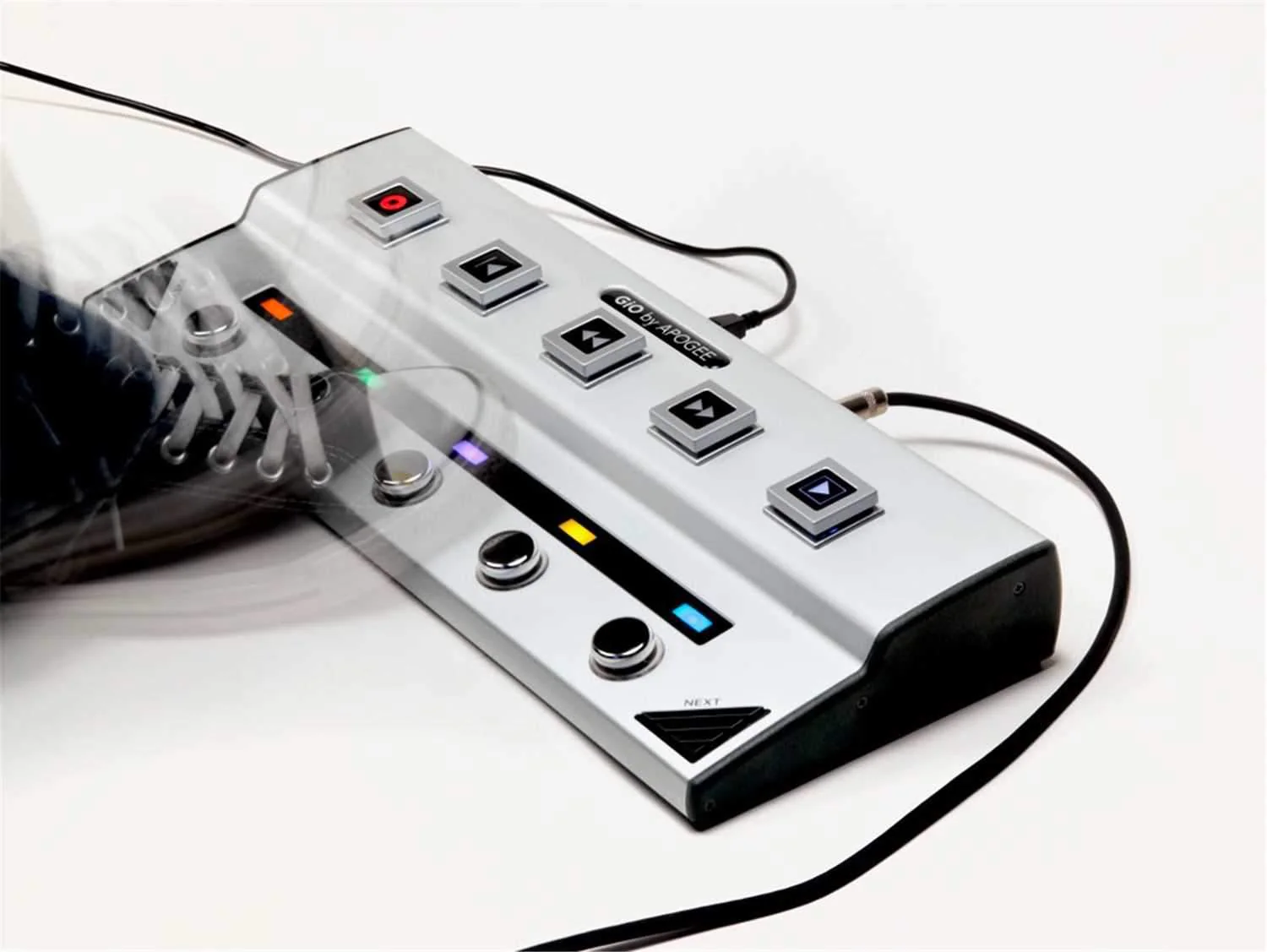

Apogee GiO

GiO is the complete guitar interface for Apple’s new Logic Studio 9, MainStage 2 and GarageBand ’09. Combining effects control, recording functions and amazing sound quality, GiO delivers total access to incredible sounding guitar amps and effects in a single foot controller and interface.

Designed to work with the new Logic Studio 9 and MainStage 2, GiO allows guitar players to control recording functions, preset changes and plug-ins like Amp Designer and Pedalboard, along with new Playback and Loopback features in MainStage. With GarageBand 09, GiO is truly plug-and-play and lets users quickly connect their guitar, select and control built-in Amps and stompboxes, and record.

Features

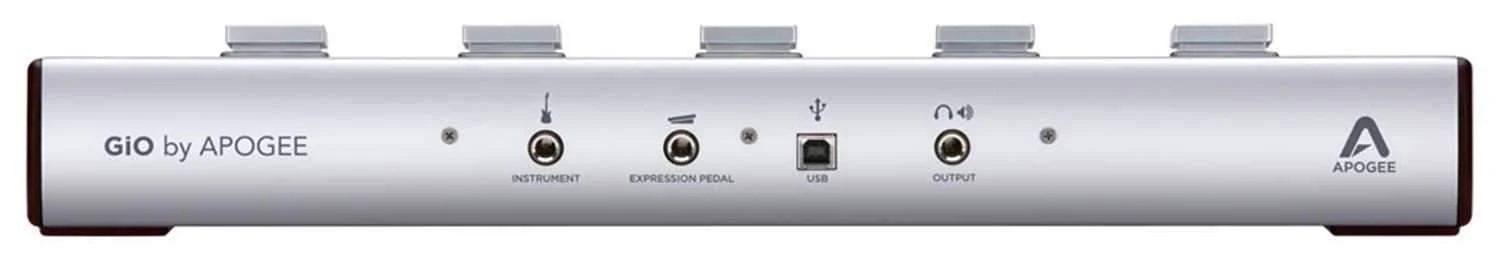

• Unbalanced 1/4" high impedance instrument input
• 1/4" MIDI Expression pedal input
• Line-level, 1/4" stereo output for headphones, powered monitors
• or an instrument amplifier
• A/D and D/A conversion @ 44.1/48kHz, 24-bit

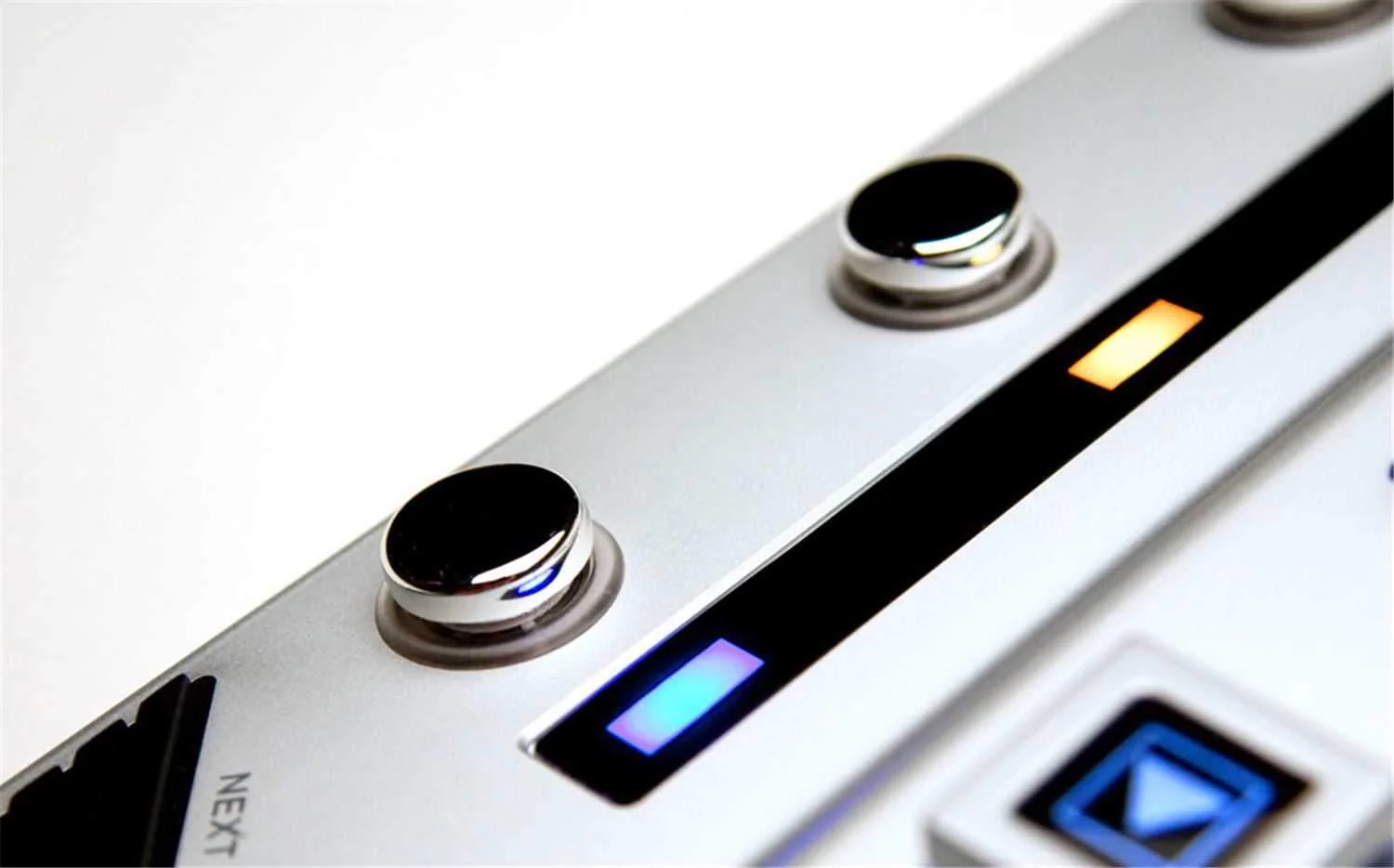

• 5 Stompbox buttons, dynamically color coded to match software effects
• 5 Transport control buttons, dynamically lit when engaged
• 2 "Previous/Next" preset selection buttons
• Control built into Apple’s GarageBand '09, Logic Pro 9, and MainStage 2 software
• Dimensions: 7" W x 18" L x 2.5" H

System Requirements

• Computer: Mac, with an Intel or PowerPC G5 processor
• Memory: 1 GB minimum of installed RAM, 2 GB recommended
• OS: 10.5.7 or greater
• Apple’s GarageBand '09, Logic Pro 9, MainStage 2, Logic Express 9
• Connection and Power: USB, powered by any available USB port on the computer

Package Contents

• GiO
• 5 meter USB cable
• 3 meter 1/4" Stereo to Left/Right RCA cable
• Apogee Software & Documentation CD
• QuickStart Guide
