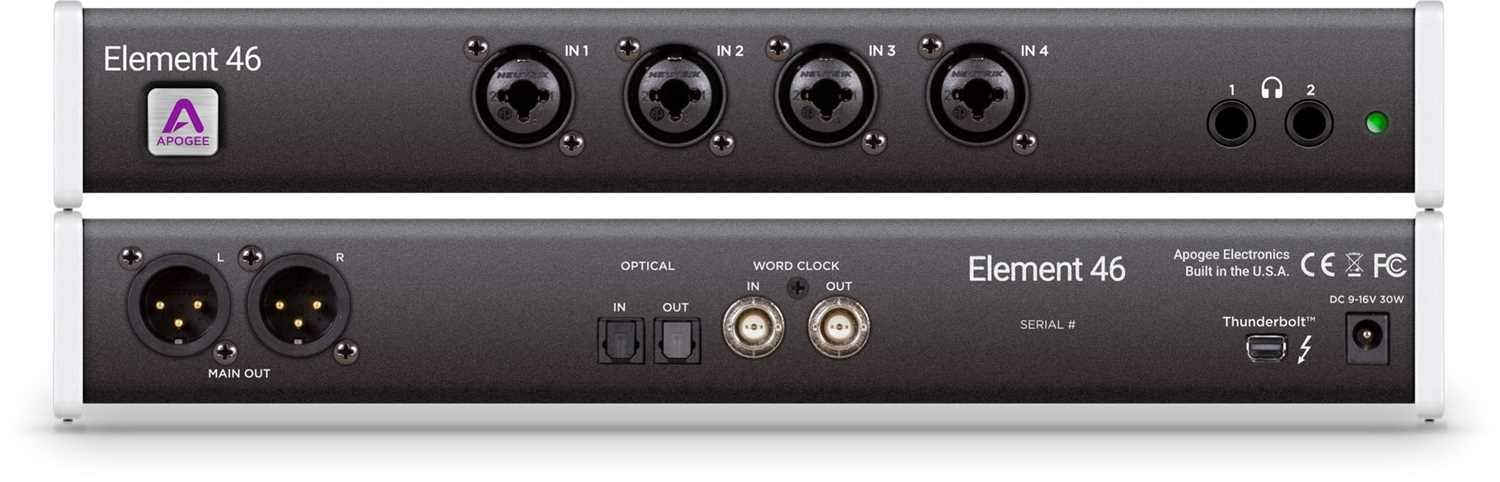

Apogee Element 46 Thunderbolt Audio Interface

Element 46 is great for any collaborating musician recording at home, on the go or in a small project studio. With 4 analog inputs (including 4 world-class mic preamps), 2 headphone outputs and stereo speaker outputs, Element 46 is the perfect upgrade from an entry level audio interface.

• 12 in x 14 out audio I/O box
• AD/DA conversion for recording up to 192kHz/24-bit
• 4 analog inputs with world-class mic preamps and selectable 48v phantom power for connecting microphones, instruments or line-level devices
• 4 combination inputs
• 6 analog outputs
• 2 balanced L/R XLR outputs
• 2 1/4" stereo headphone output
• Single port Thunderbolt connectivity to Mac for ultra-low latency performance
• 1.41ms round-trip at 96kHz with a 32 buffer setting
• Optical in: supports ADAT, SMUX & S/PDIF
• ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
• SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
• S/PDIF: 2 channels, up to 192 kHz on 1 Toslink connector
• Optical out: supports ADAT, SMUX & S/PDIF
• ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
• SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
• S/PDIF: 2 channels, up to 192 kHz on 1 Toslink connector
• Word clock in/out via BNC connections for syncing with other digital audio gear
• Element Control Software for Mac provides all control of hardware parameters including input gain, output level and low latency monitoring
• Element Control Mobile App provides wireless remote control of hardware via iPhone, iPad or iPod touch
• Works with Apogee Control – optional desktop hardware remote control (sold separately)
• Multi-Unit Thunderbolt support – Connect any two Element audio I/O boxes directly to Thunderbolt ports on your computer
