Apogee Element 24 Thunderbolt Audio Interface

Element 24 is perfect for the independent musician recording with 1 or 2 inputs at a time who wants the best possible sound quality, lowest latency and high quality performance.

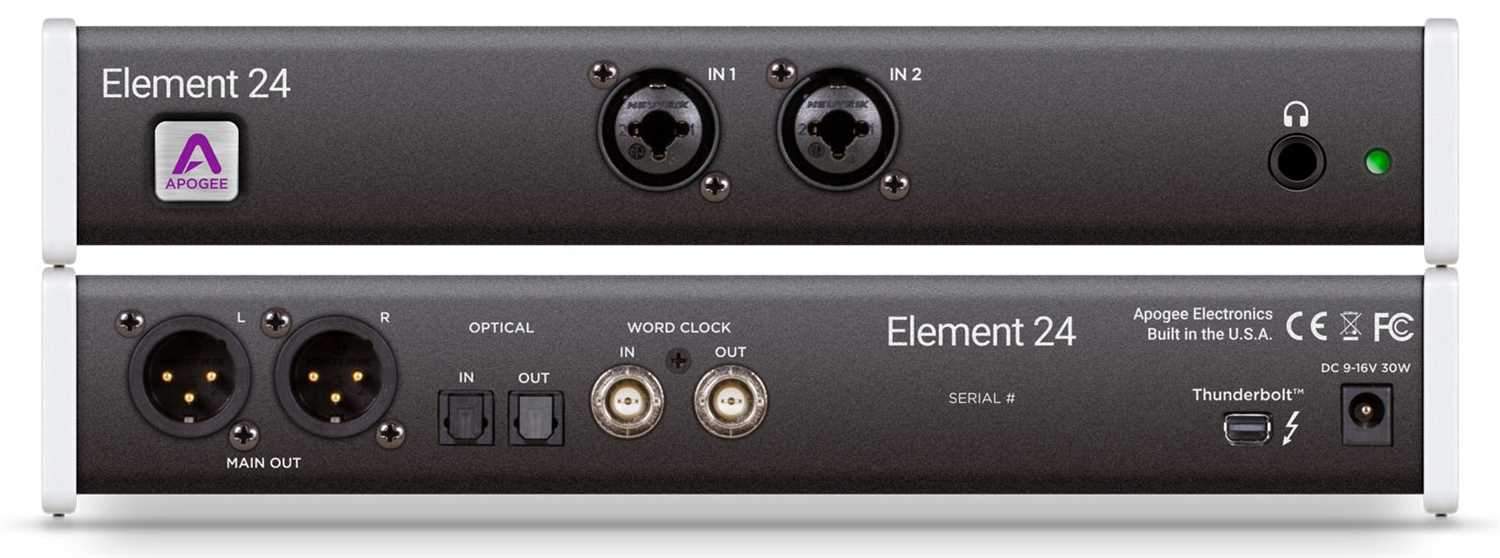

• 10 in x 12 out Thunderbolt audio I/O box
• AD/DA conversion for recording up to 192kHz/24-bit
• 2 analog inputs with world-class mic preamps and selectable 48v phantom power for connecting microphones, instruments or line-level devices
• 2 combination inputs
• 4 analog outputs
• 2 balanced L/R XLR outputs
• 1 1/4" stereo headphone output
• Single port Thunderbolt connectivity to Mac for ultra-low latency performance
• 1.41ms round-trip at 96kHz with a 32 buffer setting
• Optical in: supports ADAT, SMUX & S/PDIF
• ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
• SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
• S/PDIF: 2 channels, up to 192 kHz on 1 Toslink connector
• Optical out: supports ADAT, SMUX & S/PDIF
• ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
• SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
• S/PDIF: 2 channels, up to 192 kHz on 1 Toslink connector
• Word clock in/out via BNC connections for syncing with other digital audio gear
• Element Control Software for Mac provides all control of hardware parameters including input gain, output level and low latency monitoring
• Element Control Mobile App provides wireless remote control of hardware via iPhone, iPad or iPod touch
• Works with Apogee Control – optional desktop hardware remote control (sold separately)
• Multi-Unit Thunderbolt support – Connect any two Element audio I/O boxes directly to Thunderbolt ports on your computer
