Allen & Heath DX Link DX Network Interface Card

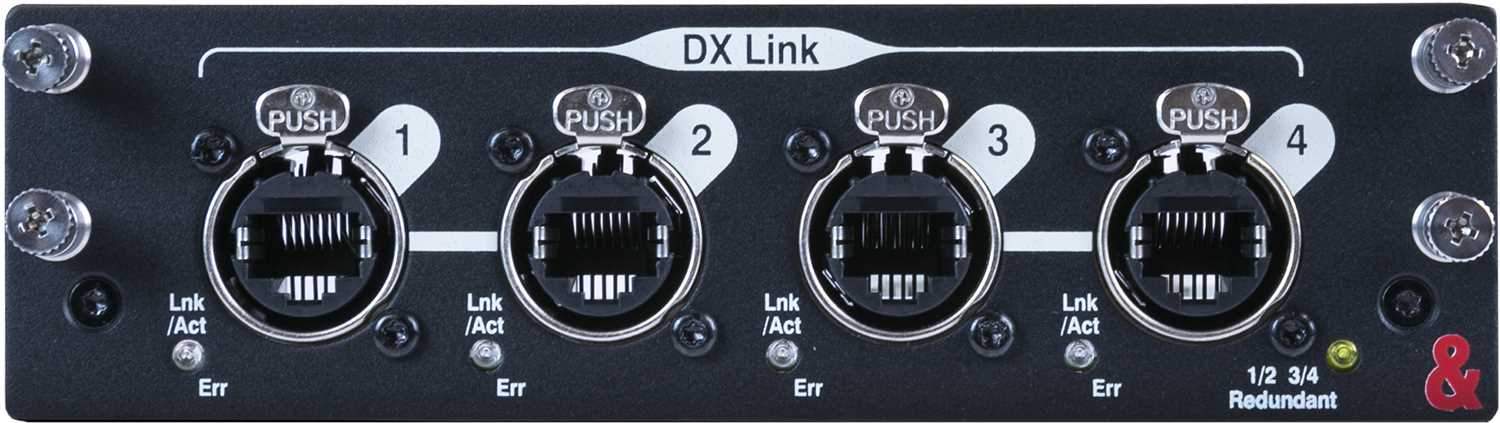

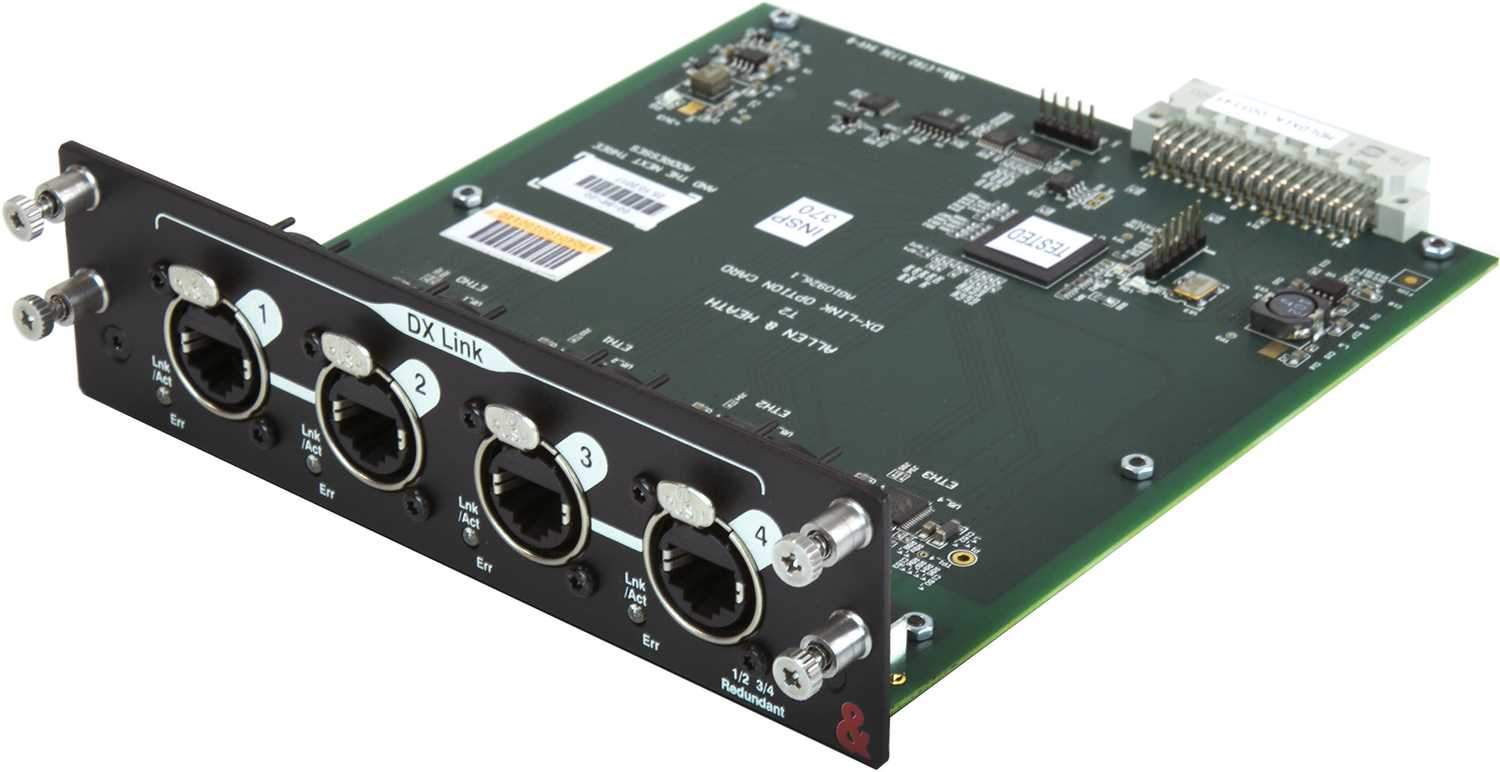

dLive audio networking card The DX Link audio networking card (M-DL-DXLink) is one of several audio networking options that can be fitted to any Allen & Heath dLive I/O Port. It provides 4 DX Link ports each carrying 32×32 channels of 96kHz audio, that can be used to connect to dLive DX expander units in either Parallel or Redundant mode.

In Redundant mode, 1 DX32, DX168 or DX164-W expander can be connected to each pair of DX Link ports using 2 Cat5e or higher cables per redundant connection. In Parallel mode, 1 DX32 or up to 2 DX168/DX164-W expanders can be connected to each DX Link port allowing up to 128 remote inputs and 64 remote outputs to be added to the dLive system per DX Link module.

Features:

• 4 DX Link ports
• Locking etherCON connectors
• Compatible with DX32, DX168 and DX164 audio expanders
• Add up to 128 inputs and 64 outputs to a dLive system per DX Link module
• Redundant or Parallel connection modes
• 96kHz sample rate
