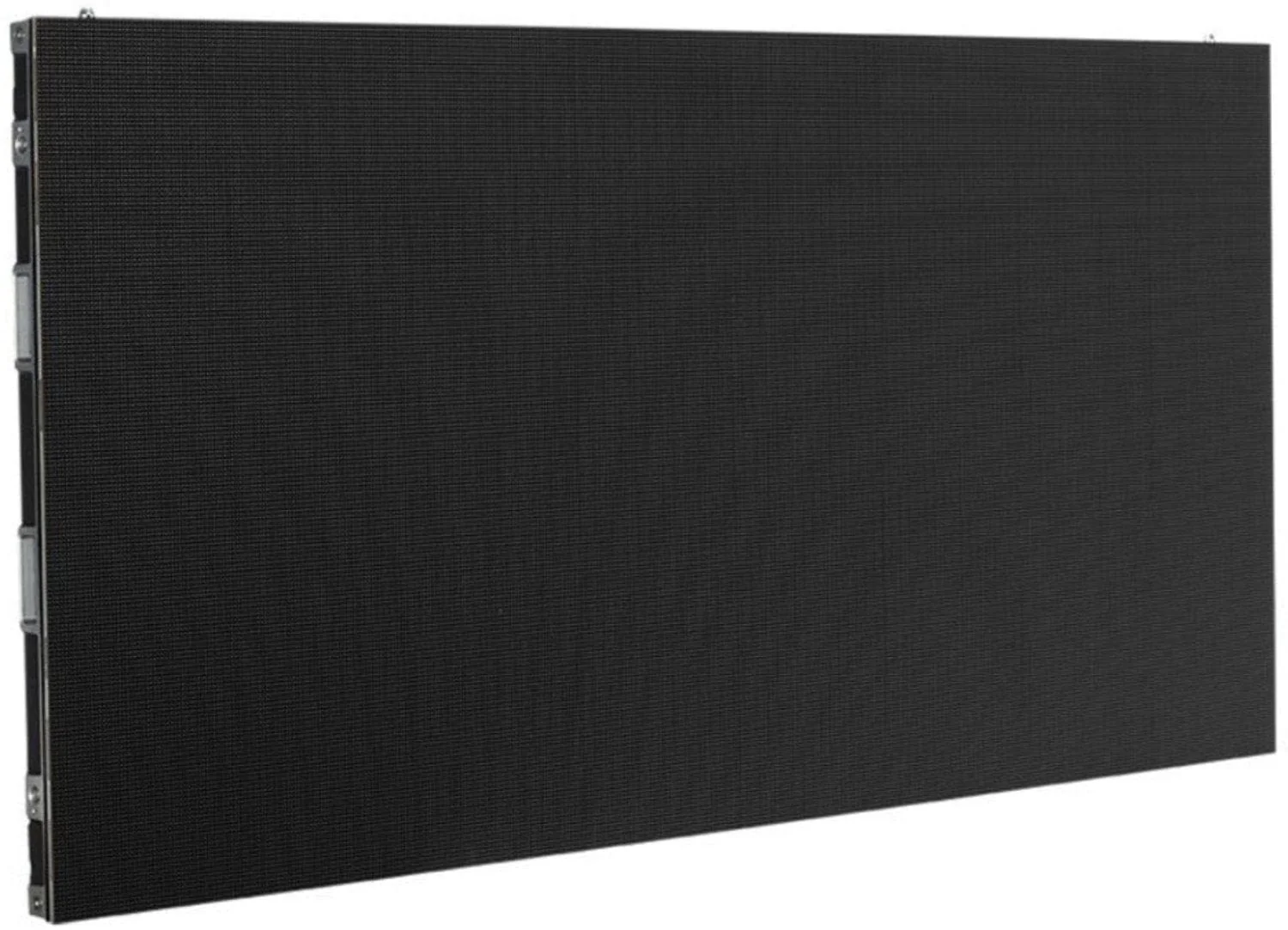

ADJ American DJ WMS2 LED Panel Complete System with Wired Digital Communication Network

Ideal for a wide range of integration projects, the WMS2 is ADJ’s highest resolution video panel to date. Featuring a 2.6mm pixel pitch, it delivers unparalleled vibrance and clarity with a pixel density of 147,456/m² and a brightness of 800 NITS. The WMS2 offers flexibility with its wall-mountable or temporary hanging options and can be configured in either horizontal or vertical orientations. Its front serviceable design makes installation and maintenance simple, making it a versatile choice for various applications.

Features:

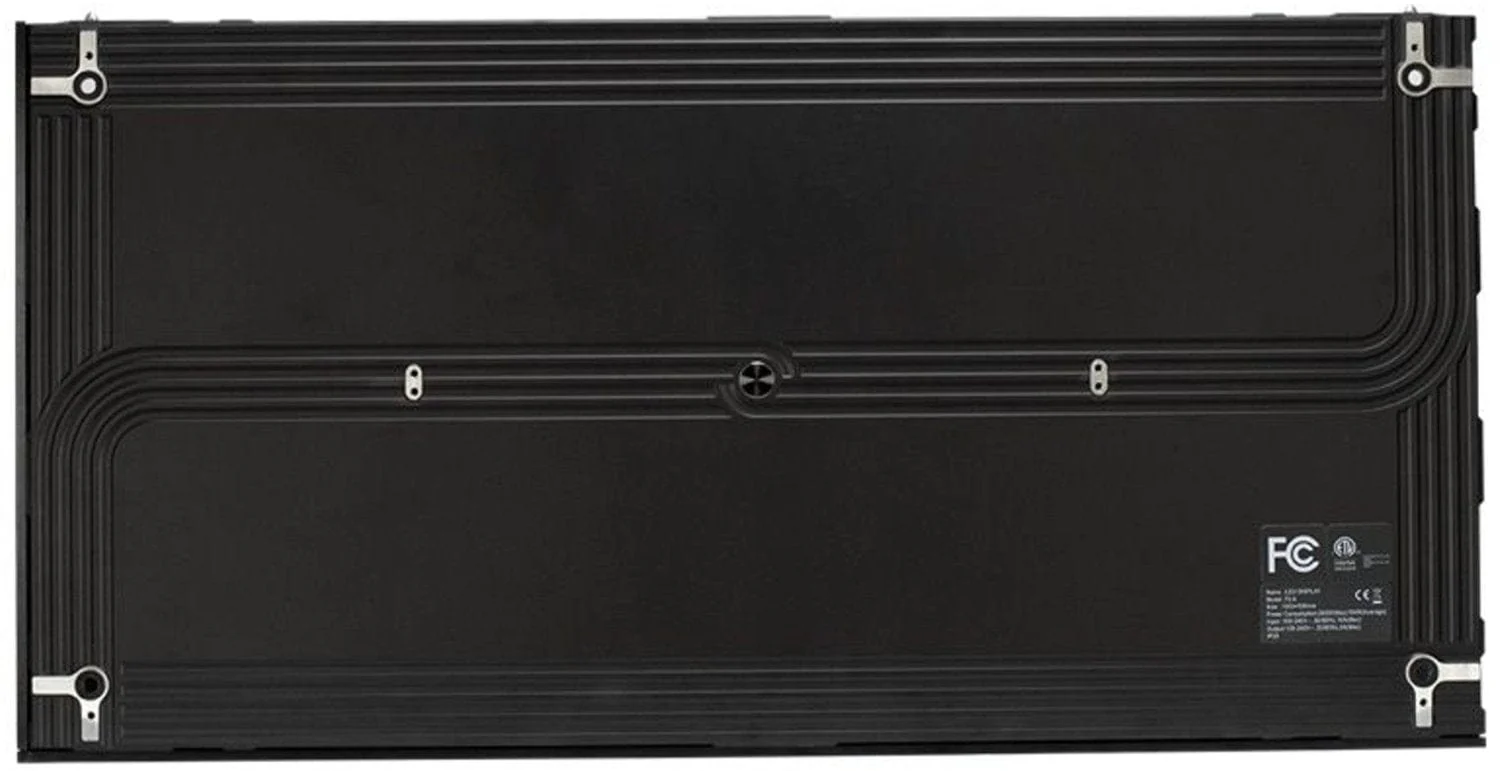

• Installation Method: Hang, Stack or Wall Mount

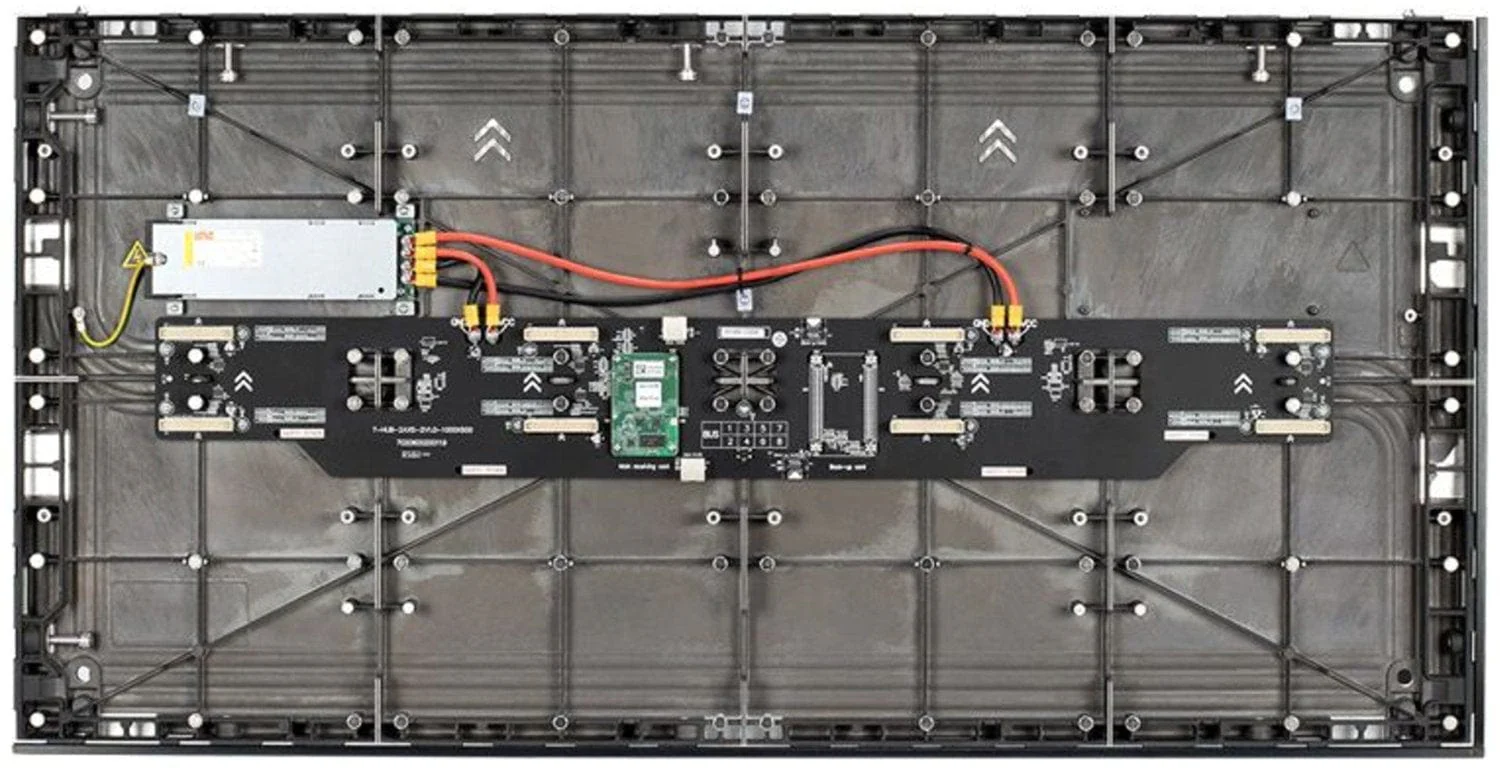

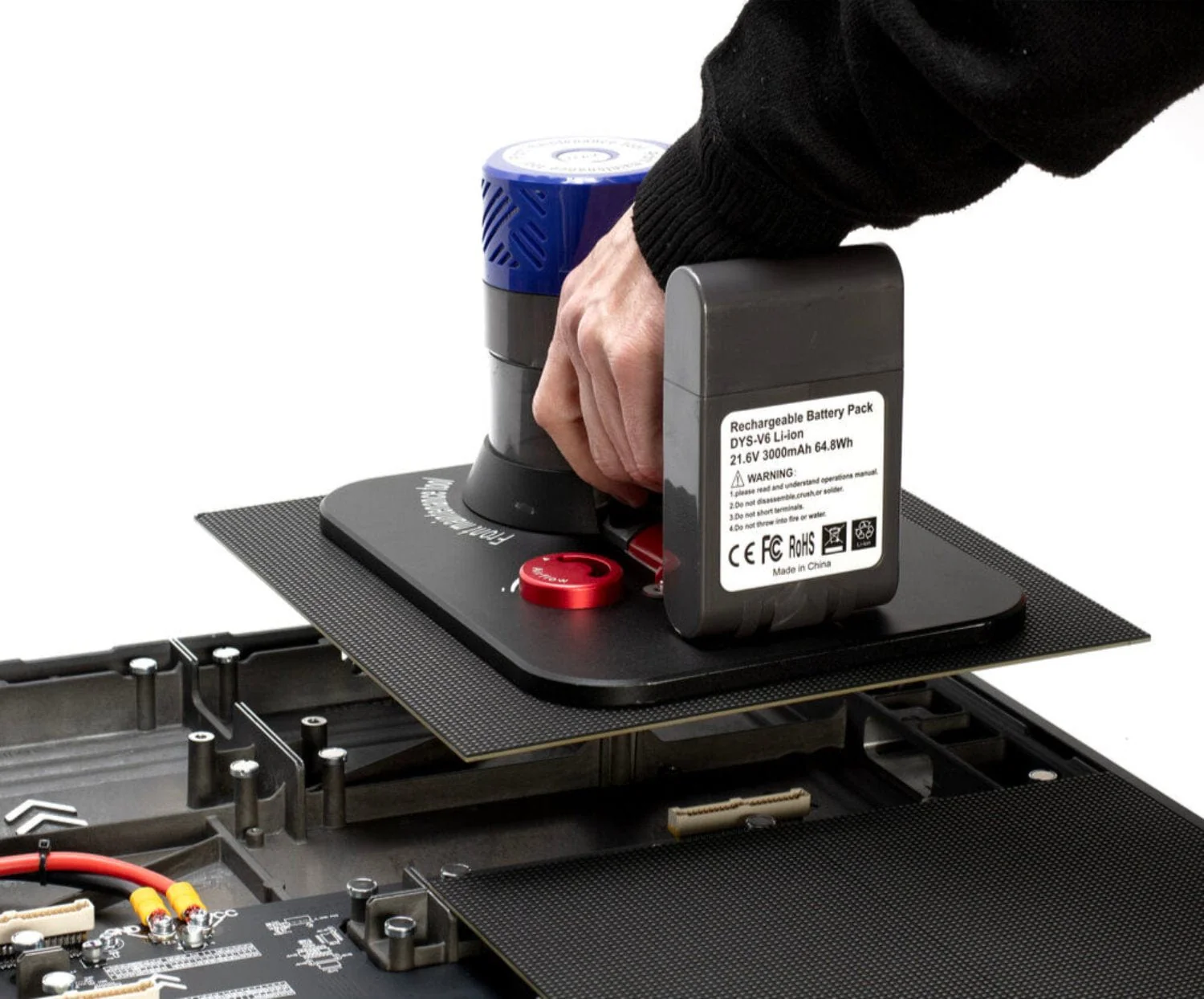

• Maintenance: Front Service
• Configuration: Horizontal (wall mount, ground stack or hang); Vertical (wall mount only)

Specifications:

• Pixel Pitch (mm): 2.6mm
• Pixel Density (dot/m²): 147,456
• LED Sealing Type: SMD1515 Kinglight Cooper

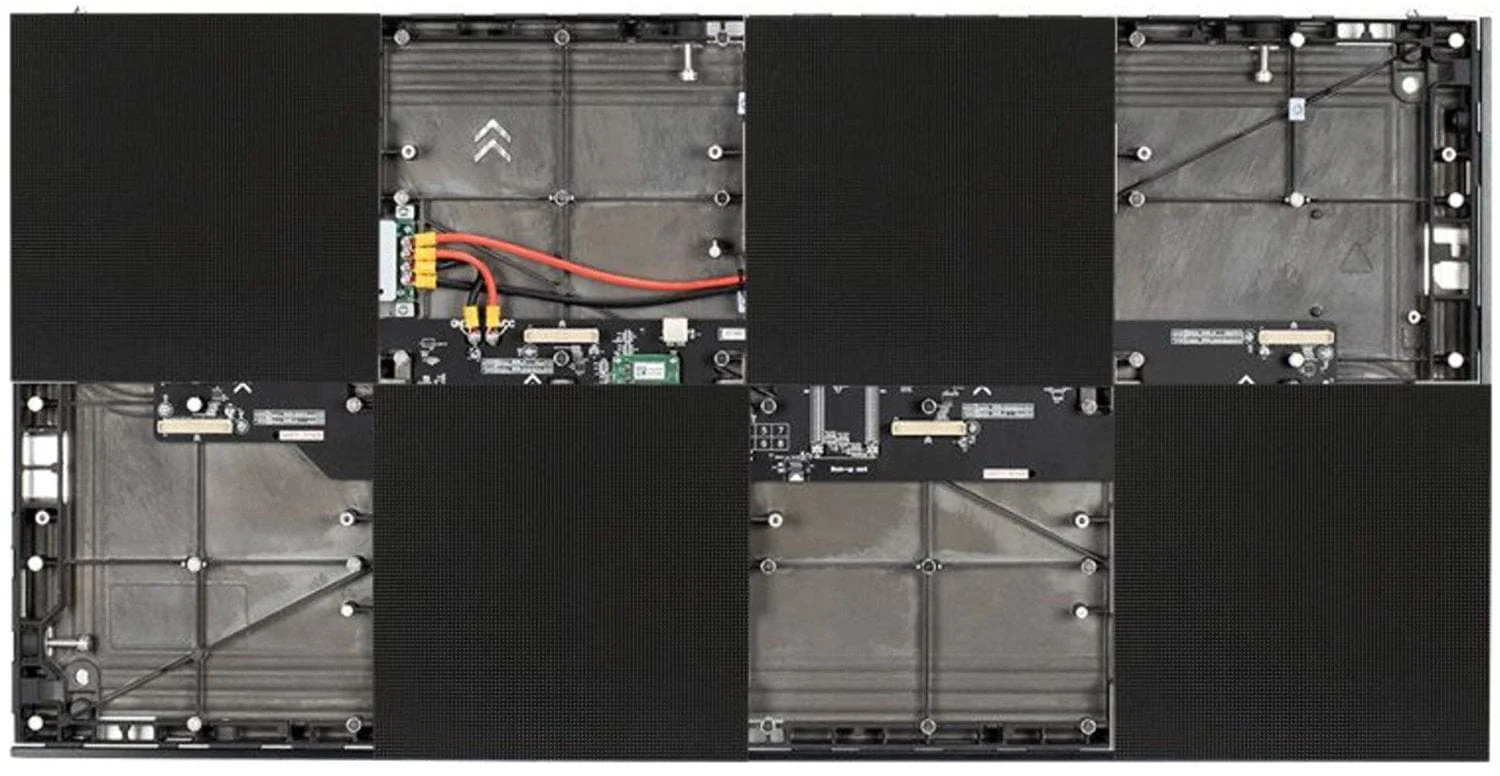

• Module Size (mm x mm): 250 x 250
• Module Resolution (PX x PX): 96 x 96
• Panel Resolution (PX x PX): 384 x 192 pixels (horizontally) or 192 x 384 (vertically)
• Average Life (Hours): 50000H
