ADJ 2.9mm LED Video Wall Panel

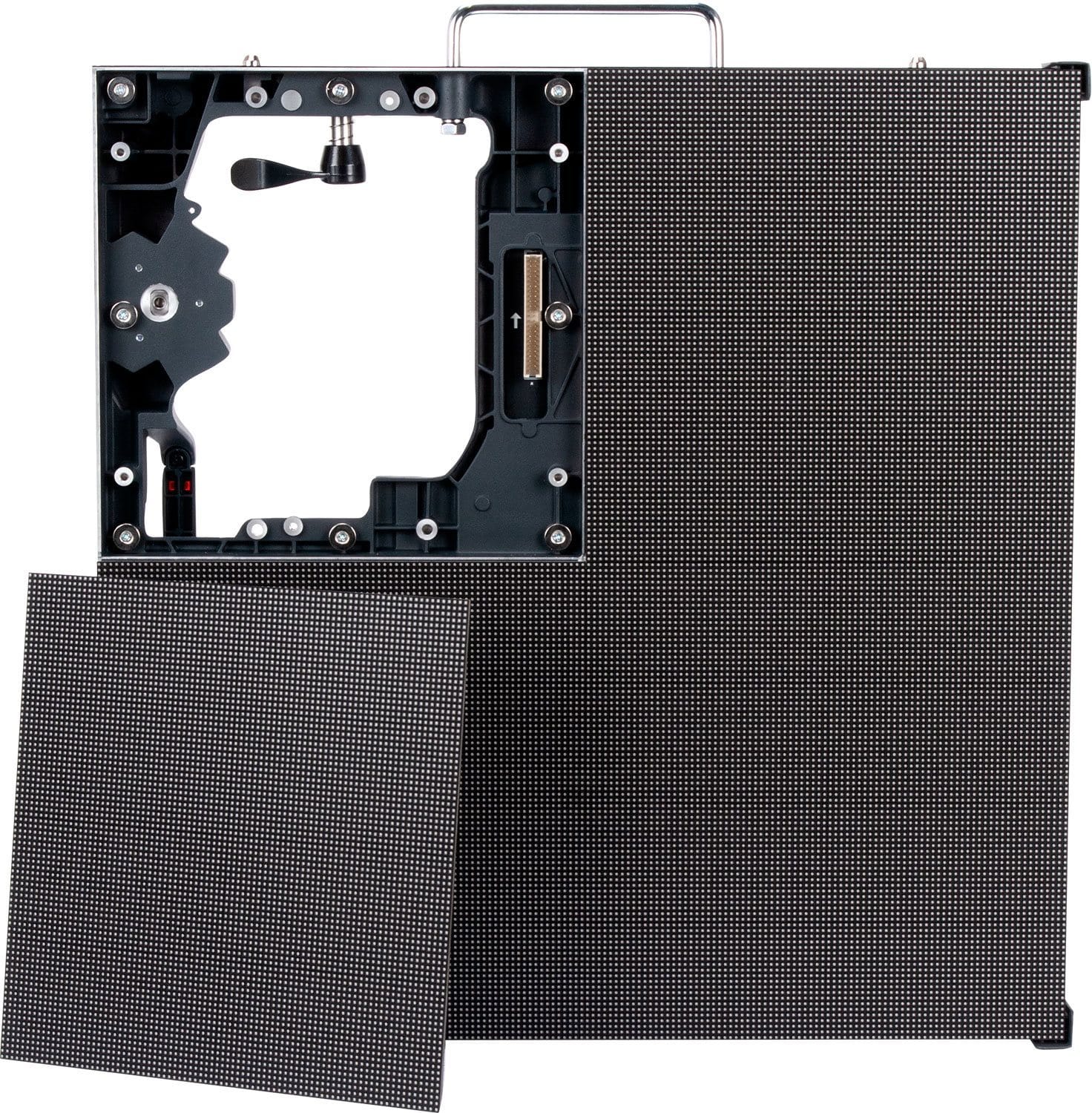

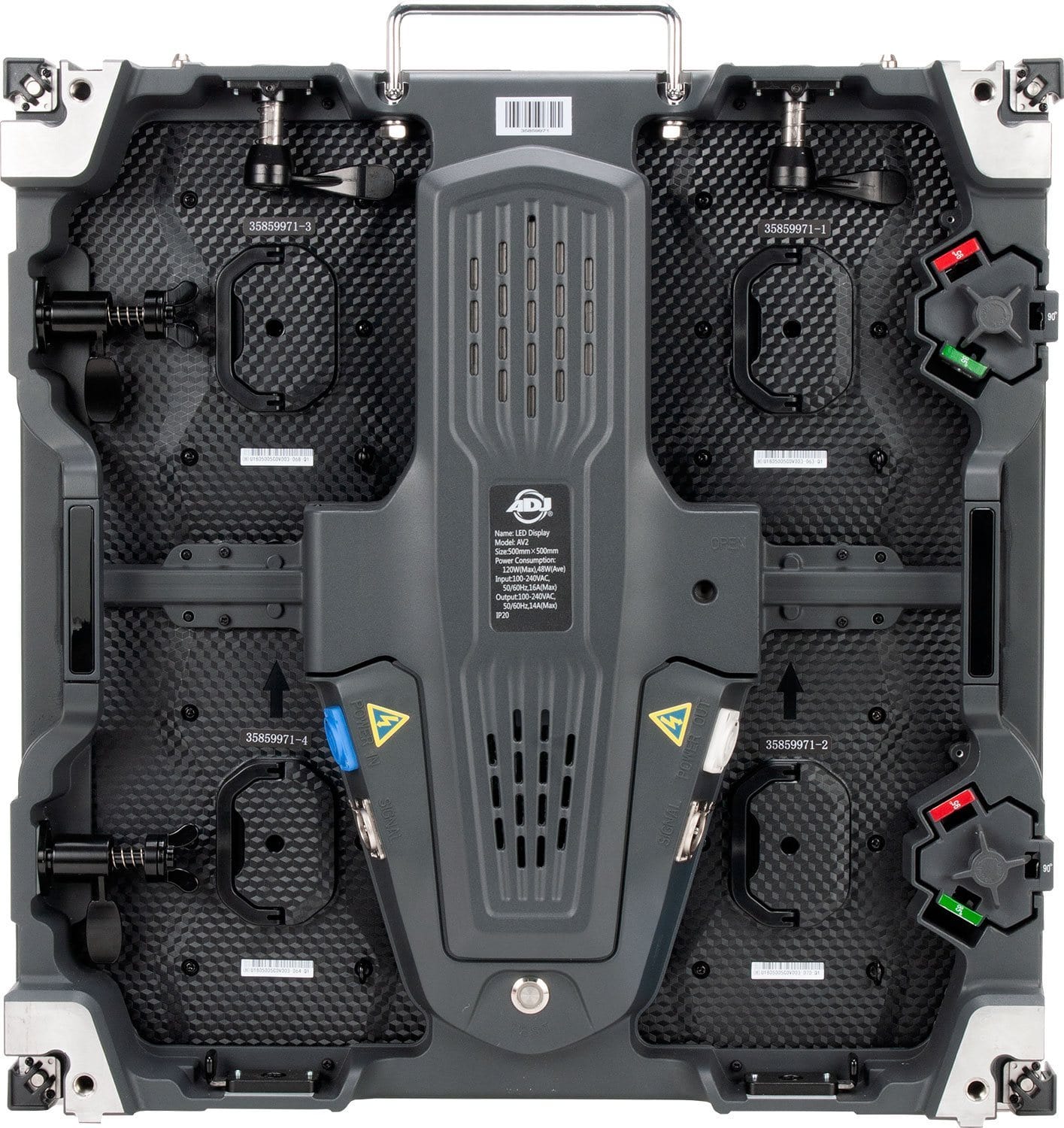

The AV2 is a high resolution, flexible video panel from ADJ. Each panel has a pixel pitch of 2.97mm with a configuration of a 3-in-1 RGB SMD2121 LED. The panel can curve in convex or concave +/-5°. The brightness is 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The AV2 connections include powerCon In/Out and Ethercon In/Out. This panel also features a Novastar A5s receiving card.

Features:

• Pixel Pitch: 2.97mm (0.17")
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 168x168; 112896 per square meter
• Module Quantity: 4
• Surface Flatness: Gaps<0.5mm
• Brightness: 1000 NITS
• View Angle: Horizontal 160°/Vertical up 60° down 60° @ 9.75 ft. (2.97m)
• Gray Scale / Display Color: 14-bit
• Brightness Adjustment: 0~100% 100 Levels
• Processing: 14-bit
• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 115W/per panel
• Ave. Power Consumption: 35W/per panel
• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/21
• Refresh Rate: ?1920Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <100m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet
• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
• Size: 19.75" x 19.75" x 3" / 500 x 500 x 73mm
• Weight: 17.64 lbs. / 8kg.
